Numarine 40Mxp

The 40MXP model enhances the popular 37XP by replacing the aft beach club/garage with a jacuzzi and a double wide swim platform, along with an enlarged aft deck area. The more traditional layout found on the 37XP has been modified so that depending on the client's style of living on the ocean, they can choose a layout that works best for their family and friends.

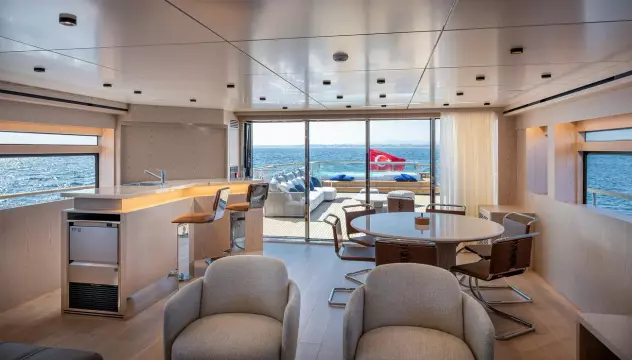

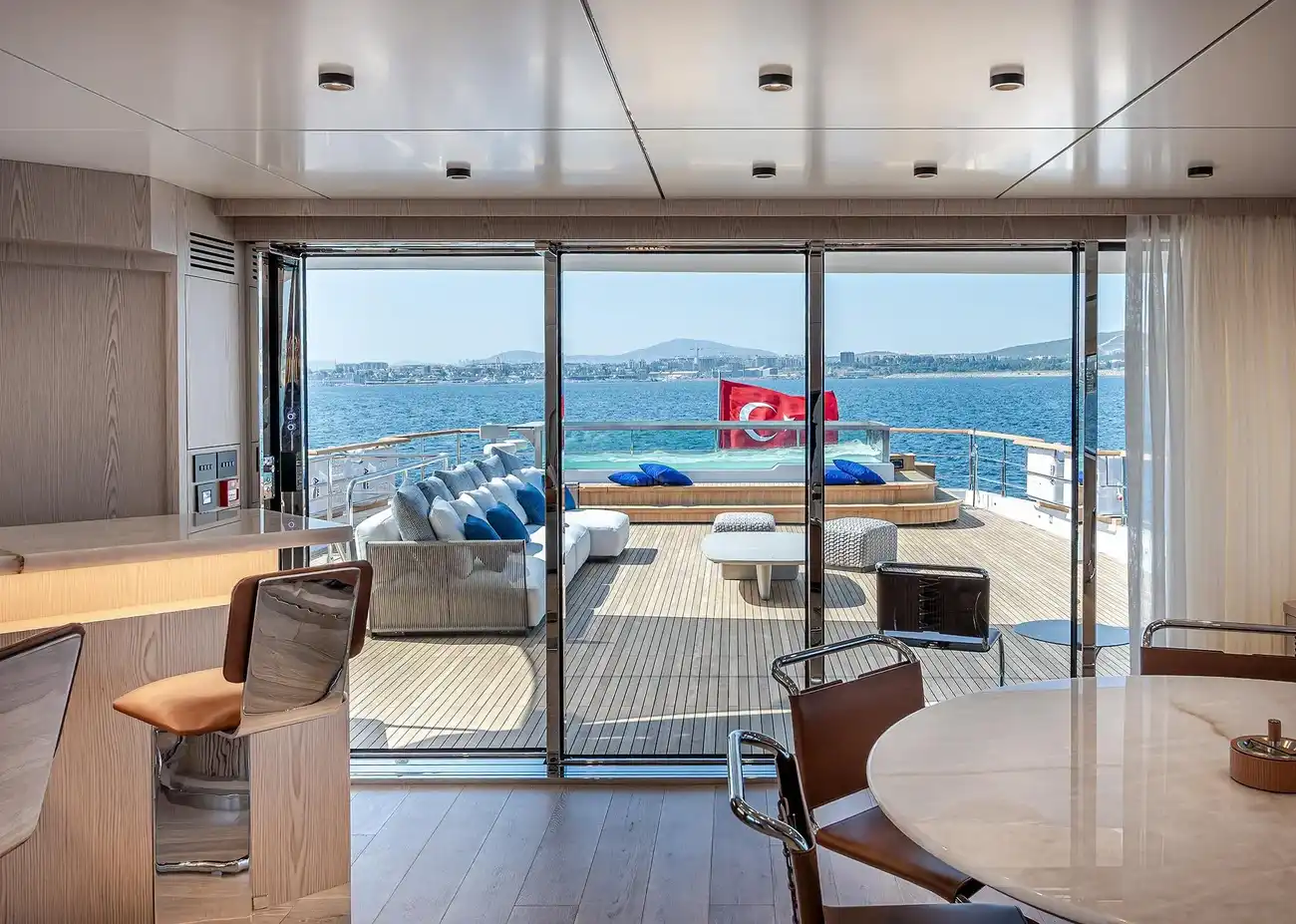

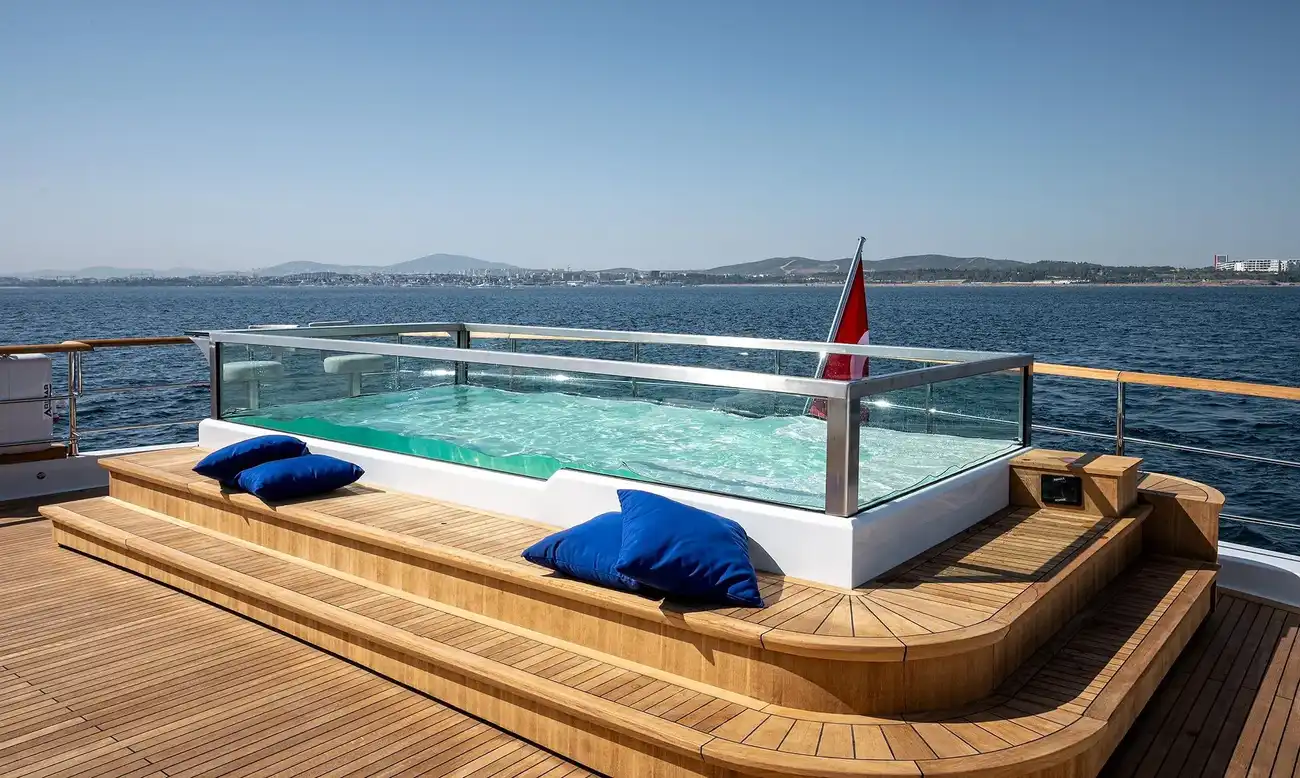

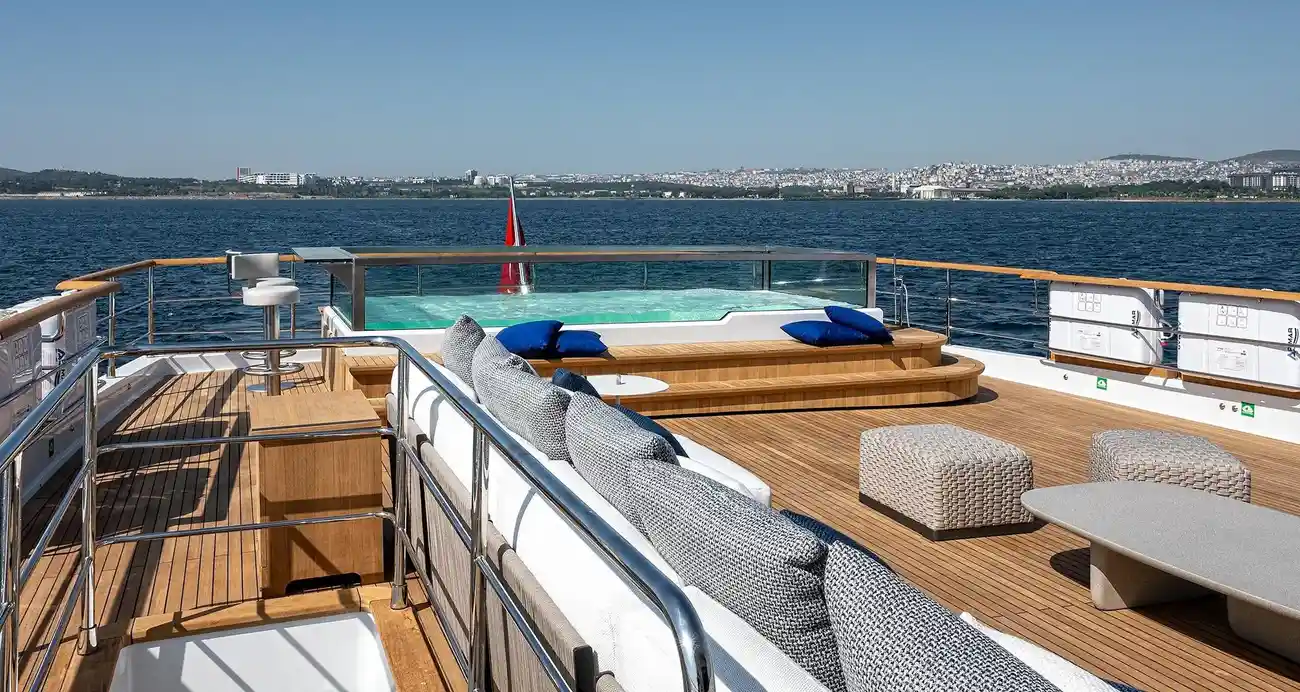

By eliminating the garage/beach club area, we have been able to enlarge the swim platform, thus the length overall has increased from 37m to 40m. The jacuzzi has created an inviting area to enjoy close to the ocean, and by moving the aft deck sliding doors forward, we have enlarged the aft main deck exterior space by converting some of the massive main salon found on the 37XP into outdoor space. You still get that great volume one would expect from the 37XP, but now the exterior and interior spaces are more balanced.

The sundeck, boat deck, and interior layout options found on the 37XP model remain the same with the 40MXP, with the only major change located at the transom of the yacht.

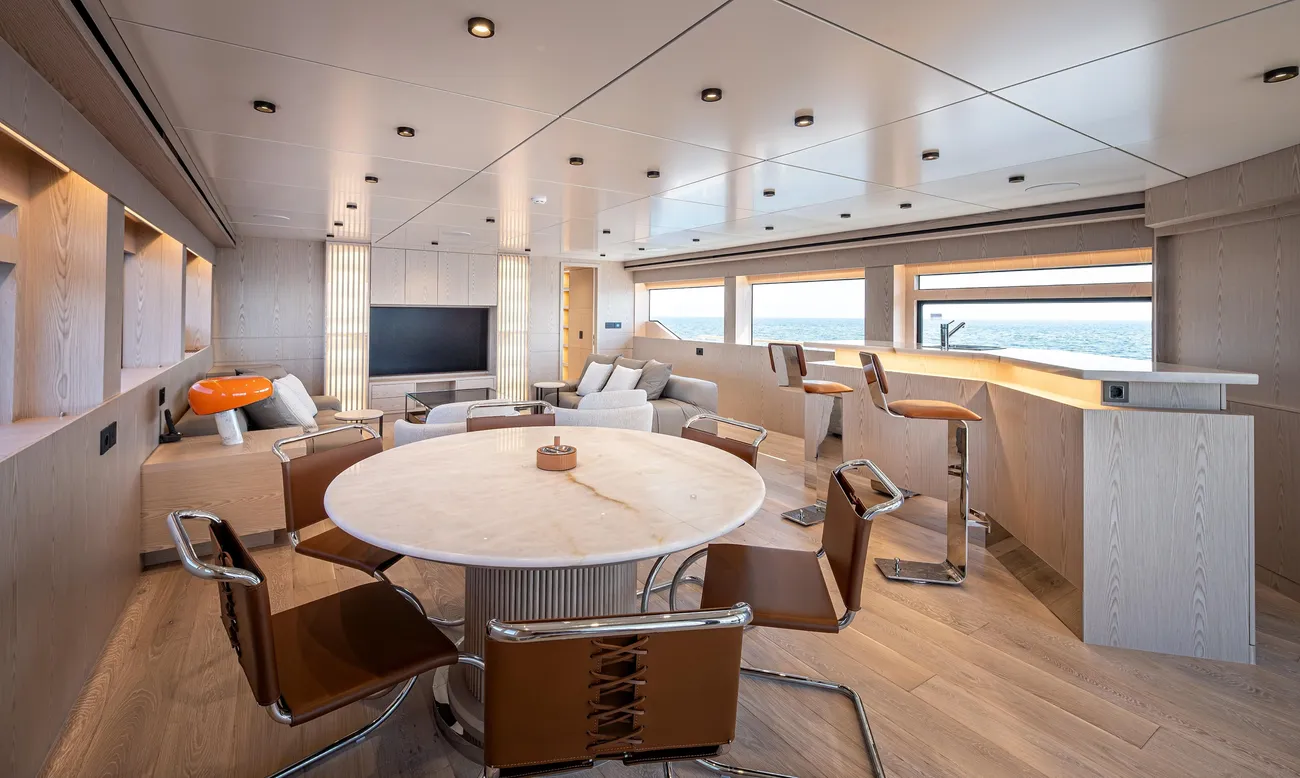

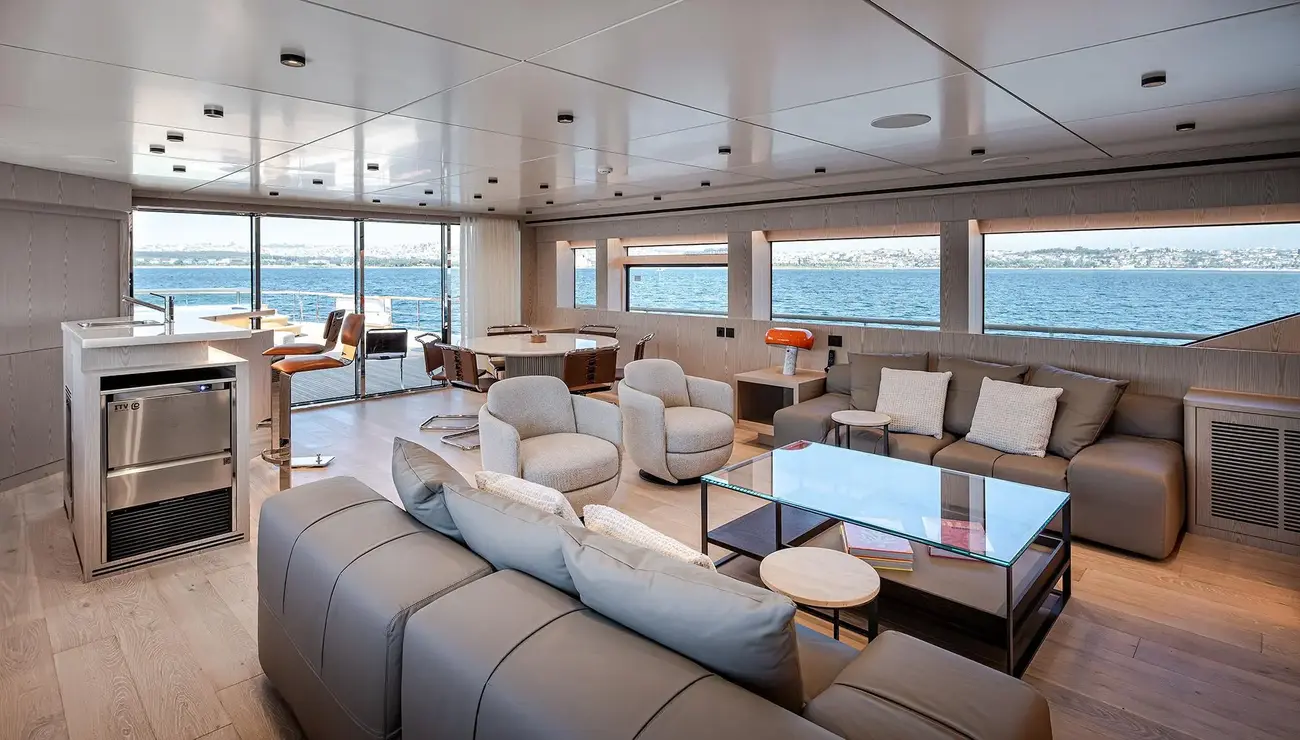

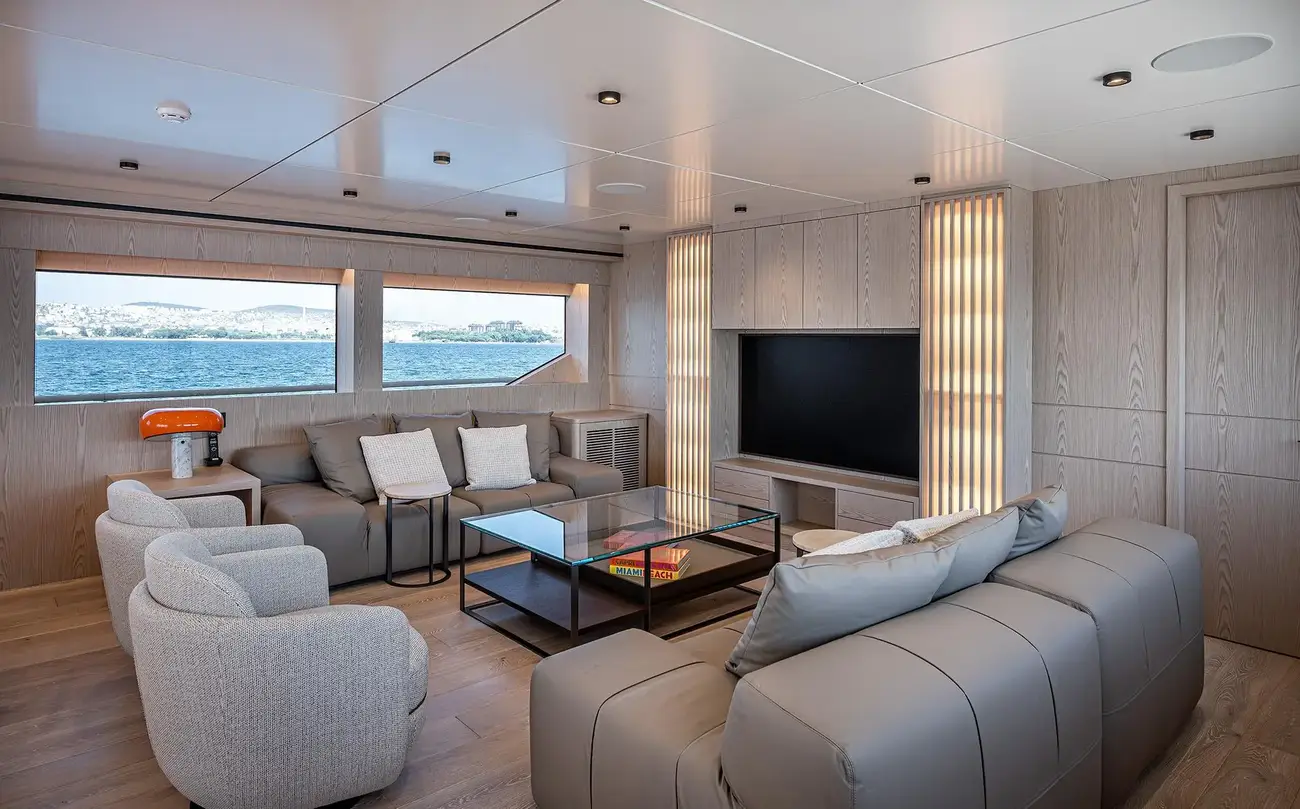

As with the 37XP, the 40MXP is available with multiple interior layouts and a custom interior decor. A sky lounge or private owner's deck is available on the upper level, which would complement the VIP/Master located forward on the main deck. Down below, there is a designated laundry room with additional refrigeration freezer spaces and 4-5 guest cabins. A popular feature we have added to multiple 37XP models is the cinema room, which is a family favorite. The options are endless, so please let us know what your family requirements are so we can customize the layout that works best for your needs.

MXP stands for Mediterranean Explorer, and the 40MXP aims to provide clients with a fantastic alternative to the more traditional garage. This more casual, relaxed arrangement is already proving to be popular, with 3 sold.

TECHNICAL SPECIFICATIONS
Length Overall: 38.11 m / 125'
Beam: 8.00 m / 26'11"
Draft (inc props): 2.71 m / 8'11"
Fresh Water Tank: 3,000 liters / 792 gallons
Black Water Tank: 2,000 liters / 528 gallons
Fuel Tank: 51,000 liters / 13,472 gallons
Engines: MAN D2868 L425 800bhp@2100
Displacement: 280t (half-load) 300t (full-load)
Max Speed: 14 knots
Cruise Speed: 12 knots
Range: 6,000 nm @ 8 knots
International Gross Tonnage: under 500GT
Actual Gross Tonnage: about 345GT

PRINCIPAL FEATURES

• Full specification including Electric Fin Stabilization


• Generators: 3x 55 - Auto Sync


• Full air conditioning / heating with central chiller system and fresh-air make up with individual controlled fan coil for each cabin


• 2x Desalinators


• Electric Bow and Stern Thruster


• Electric twin anchor windlass and twin stern capstan winches


• 24v DC/380 + 220v AC electrical system


• Hot and cold swimming shower at stern


• Flybridge wetbar with sink, hot and cold water, electric barbeque, icemaker and refrigerator


• Flatscreen televisions in all guest cabins, captain's cabin and crew mess, all with SAT connection TV? Saloon


• 75", Owner's Cabin 65", and Masters Cabin 65"


• Satellite TV system (85cm Dish)


• Raymarine electronic depth and speed displays, autopilot, VHF with AIS, two radars and plotter


• Sailor 6110 MINI C-GMDSS


• Navtex NX300 or equivalent


• Twin pump hot and cold water pressurized system with shore connection


• Toilet system with holding tank


• Automatic fire extinguishing system for engine room


• Automatic bilge pumps


• 380v AC shore power (automatic reclaim) and battery chargers


• Remote controlled search light


• Teak laid bathing platform and steps, side decks and foredeck, flybridge stairway, flybridge and cock


• Flybridge sunbed and cushions


• 1,500 Kg Capacity Tender Crane


• Fully fitted crew cabin


• Antifouling


• 6x Under water transom lights


• Fuel polishing system


• Telephone system to all cabins, crew quarters and pilothouse


• Twin 10 man life rafts


• 6 cameras with monitor in the wheelhouse and crew mess

The yacht is built with RINA C + Hull*Mach, Y Unrestricted Navigation Yacht Monitoring System.

ENGINE OPTION
2x MAN D2862 LE427 900bhp IMO TIER III

In order to provide consistency in the marketplace and on a global basis, Numarine is now advertising all of their pricing in EURO. A 'US PACKAGE' is available for each model at an additional cost. This package will include upgrades to the Numarine base models such as IMO Tier III engine packages, shore power/frequency converters, US power packages, US appliances and makers list, optional extended hard tops, etc. Pricing for the 'US PACKAGE' is available along with a detailed list of options.
